At Dunne Roberts, our circuit board design services have resulted in high-quality products for an array of clients. For a closer look at some of our custom manufacturing projects, please select a portfolio below. For more information, and to get started on your next circuit board solution, please contact us today.

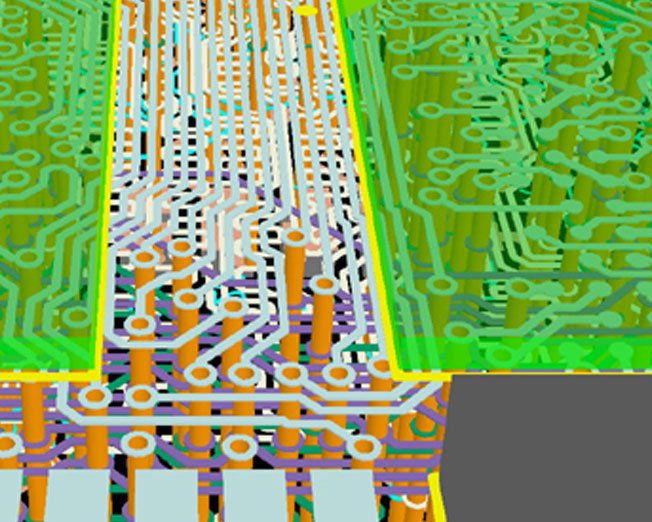

3D image showing internal via stacks on a high speed interface

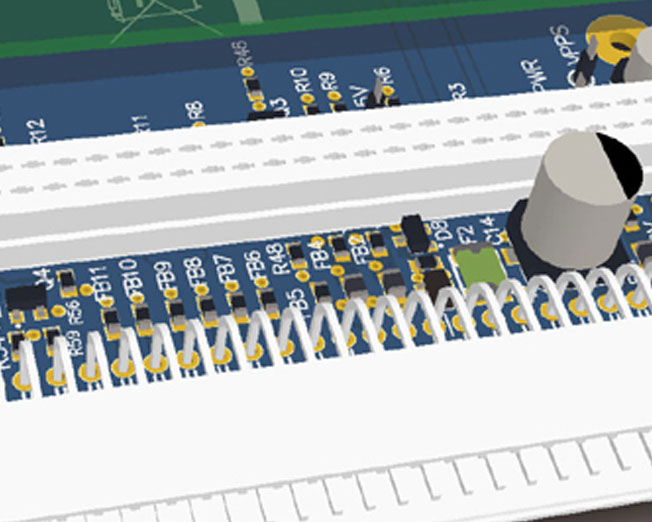

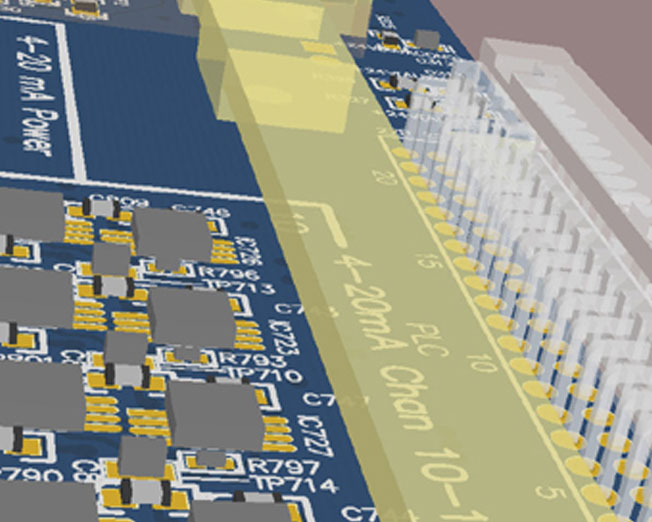

3D view of DIN4162 connector and interface connector modelling

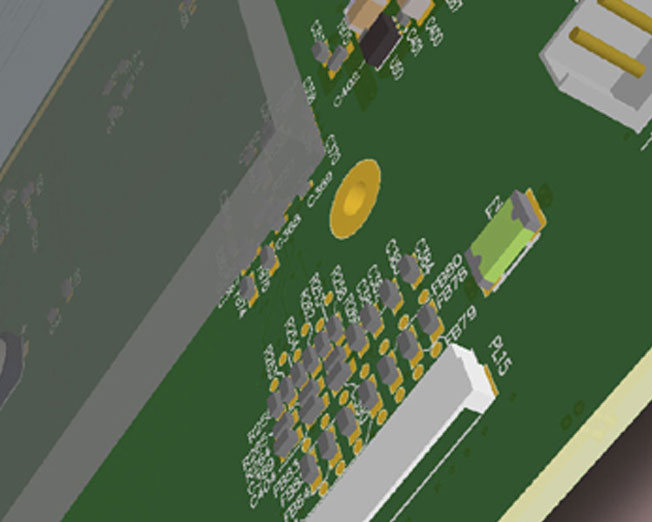

component heights around plug in module

3D view of interface connector and associated components

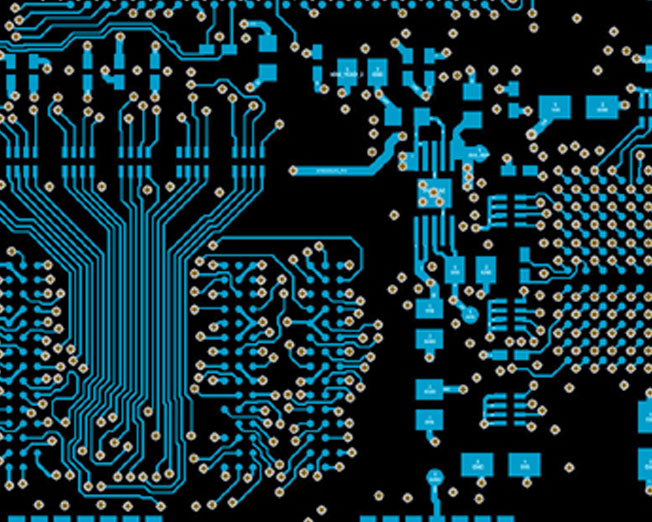

DDR memory tracking showing address bus terminations and balanced tracking
to a pair of memories on a multiple BGA card

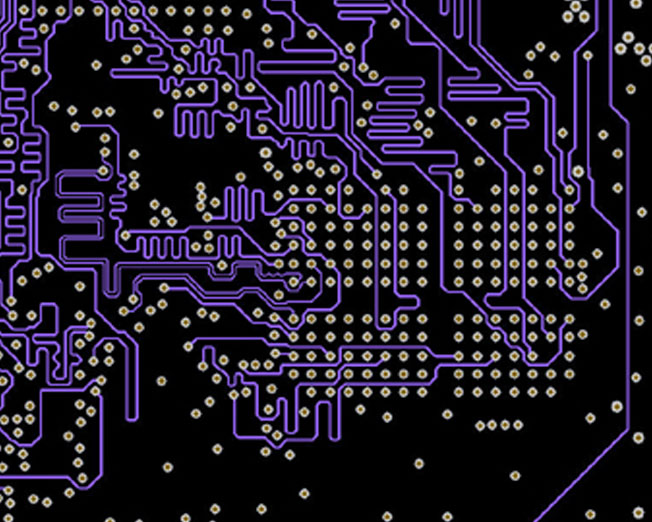

Tuned tracking on high speed interface including differential tracking

3D image showing mechanical rib imported as step model

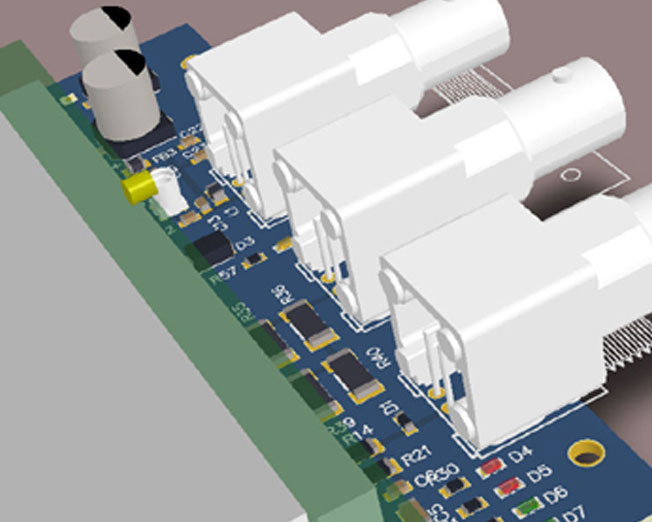

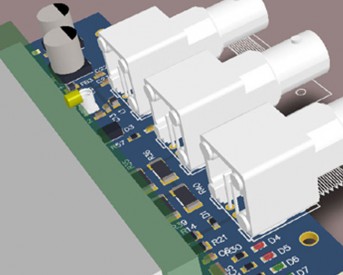

Same design as Gallery 1: showing 3D modelling

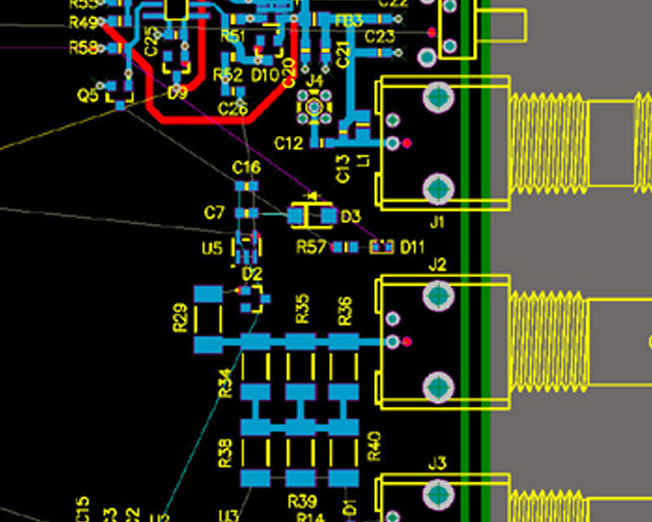

2D image showing 3 BNC connectors and high speed front end, partially tracked
